Products > APR Drill Stem Testing Tools
Slip Joint
Product Number: KW-DST-12 slip joint is an expansion and contraction compensating tool; operated by balancing its volume
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Slip Joint Features & Benefits:
KINGWELL Slip Joint Technical Data:

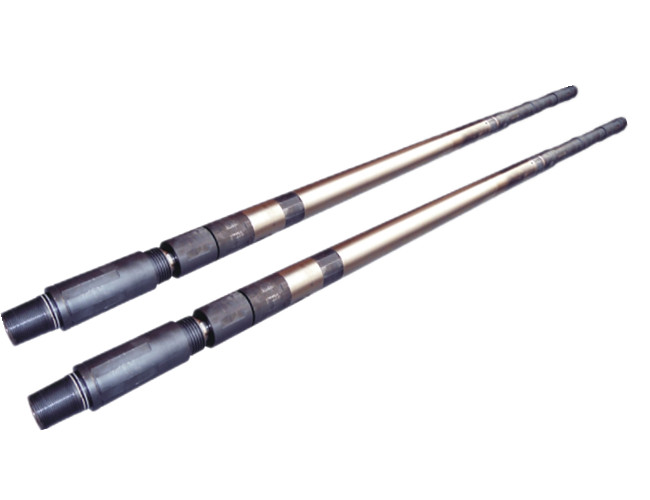

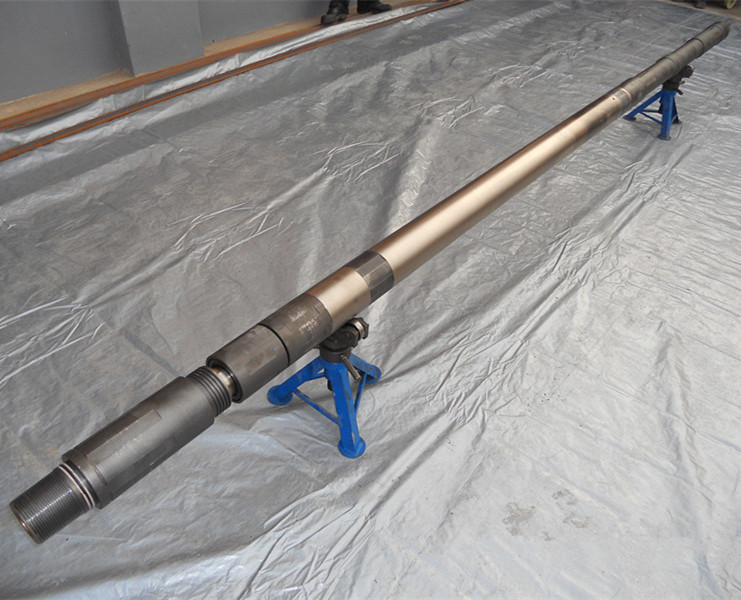

The slip joint is an expansion and contraction compensating tool, It accommodates any changes in string length caused by temperature and pressure during a downhole test.

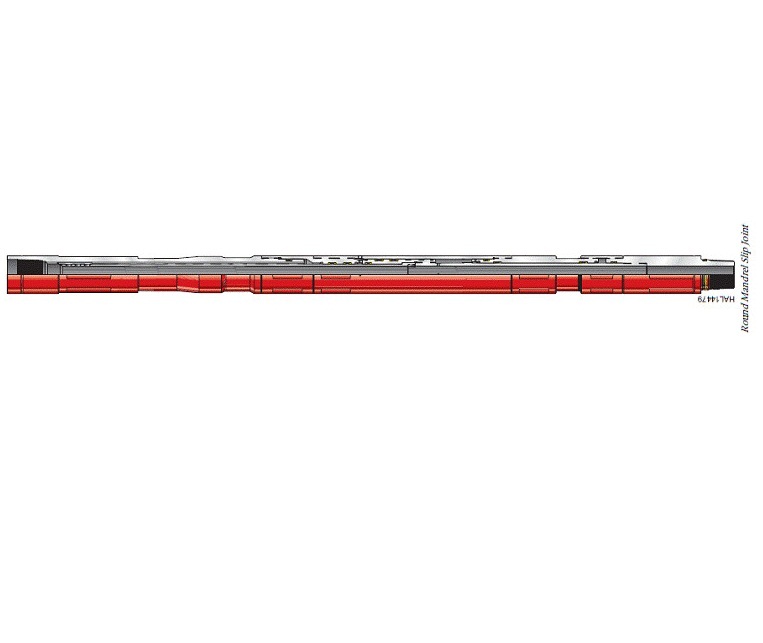

The slip joint has two distinct parts: an outer housing and a moving inner mandrel.
A slip joint operates by balancing its volume. As the slip joint stretches and increases its internal volume, a differential piston within the slip joint allows the same volume of fluid into the pipe. The net result is no change in internal volume.
KINGWELL Slip Joint Technical Data:
|
Nominal Tool Size in. |
OD in. (cm) |
ID in. (cm) |
Thread Connections |
Temperature F (*C) |
Length in. (cm) |
Stroke Length1 in.(cm) |
Tensile Rating lb (Kg) |
Working Pressure psi (bar) |
| 37/8 |
3.90 (9.91) |
1.80 (4.57) |
2 7/8 CAS |
450 (232) |
76.25 (193.68) |
60.00 (152.4) |
416,000 (188 689) |
15,000 (1034) |
| 5.00 |
5.03 (12.78) |
2.28 (5.79) |
3 7/8 CAS |
450 (232) |
76.25 (193.68) |
60.00 (152.4) |
416,000 (188 689) |
15,000 (1034) |
