Die Collar
Product Number: KW-DE-19 It is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and drill pipes.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

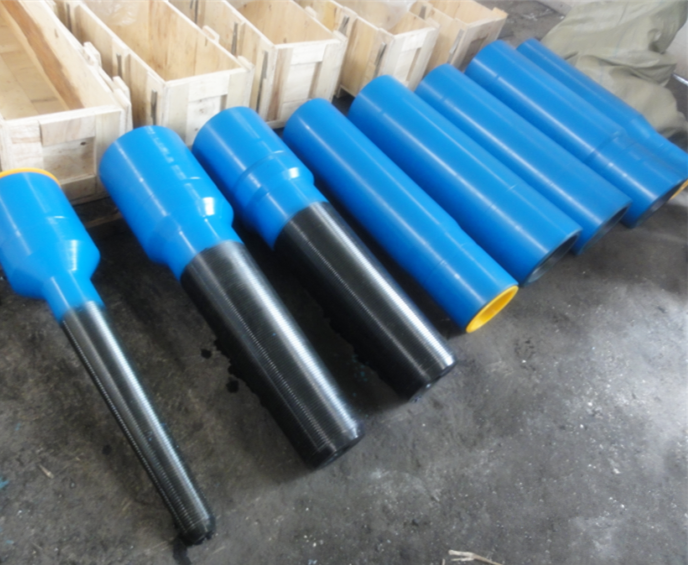

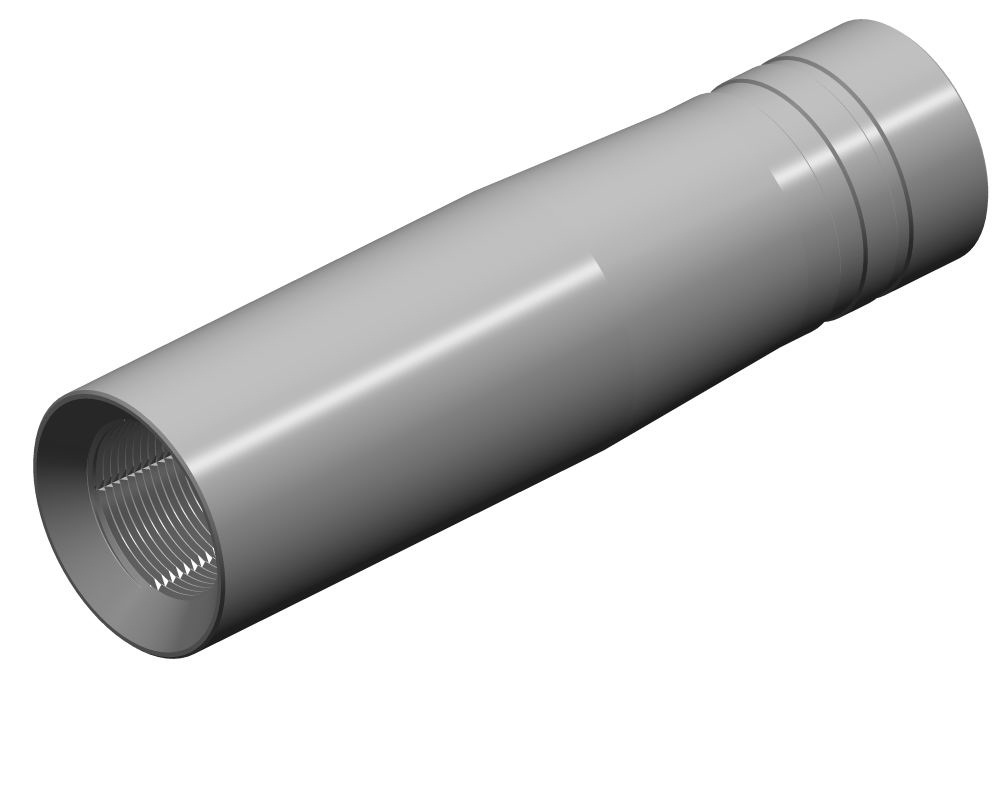

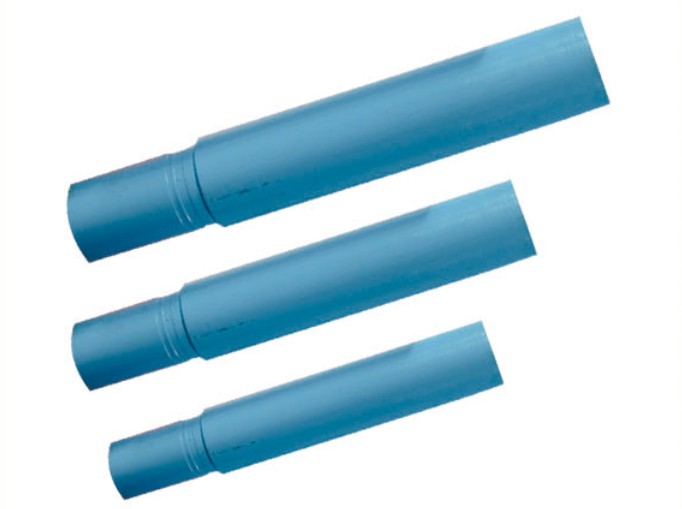

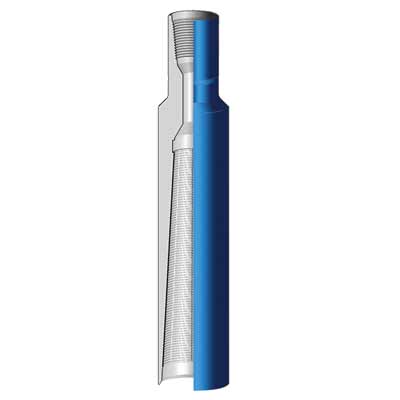

KINGWELL Die Collar Features & Benefits:
KINGWELL die collar is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and
drill pipes.
The die collar is manufactured from high alloy steel and special heat treated.
KINGWELL Die Collar Technical Data:
KINGWELL die collar is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and
drill pipes.
The die collar is manufactured from high alloy steel and special heat treated.
KINGWELL Die Collar Technical Data:
| Type | Connection | Catch Size (mm) |
| KW-NC26 | NC26 | 41~52 |
| KW-NC26 | NC26 | 50~68 |
| KW-NC26 | NC26 | 62~80 |
| KW-NC31 | NC31 | 69~73 |
| KW-NC31 | NC31 | 71~82 |
| KW-NC31 | NC31 | 76~95 |
| KW-NC38 | NC38 | 86~108 |
| KW-NC38 | NC38 | 95~118 |
| KW-NC50 | NC50 | 110~135 |
| KW-4 1/2FH | 4 1/2FH | 114 |
| KW-5 1/2FH | 5 1/2FH | 141 |
| KW-6 5/8REG | 6 5/8REG | 168 |
