Products > Drilling Equipment

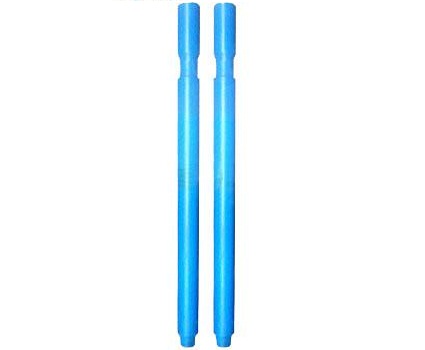

Shock Absorber
Product Number: KW-DE-11 It is used to greatly reduce shock and vibration in drilling applications to enhance performance and provide a much smoother drilling operation
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Shock Absorber Features & Benefits:
KINGWELL Shock Absorber Technical Data:
KINGWELL Drilling Shock Absorbers are used to greatly reduce shock and vibration in drilling applications to enhance performance and provide a much smoother drilling operation.
It can greatly reduce the damage (caused by shock) to drill bit, drilling tool, and thus increase drilling speed and save drilling cost.

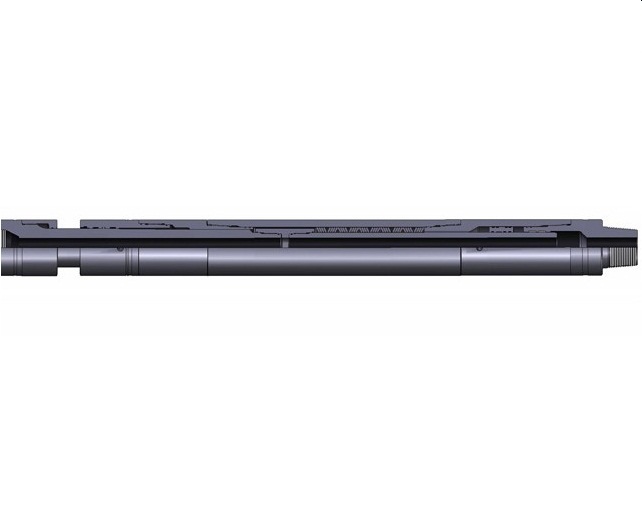

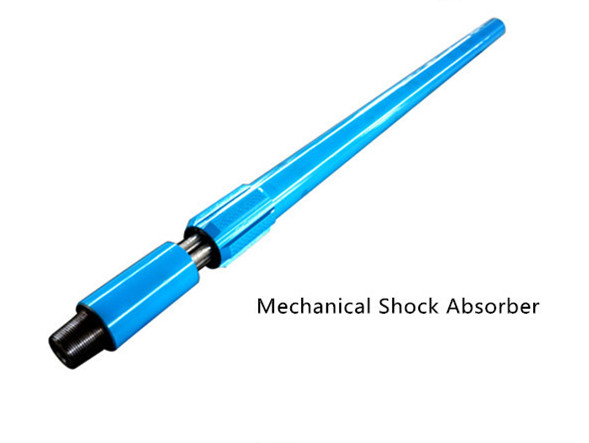

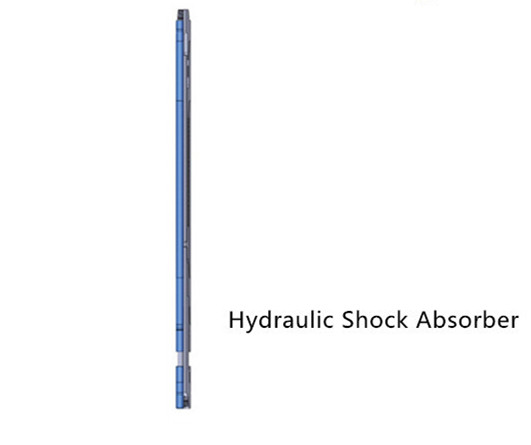

We have Mechanical Shock Absorber and Hydraulic Shock Absorber.
KINGWELL Shock Absorber Technical Data:
| OD mm(in) | 121 | 159 | 165 | 178 | 203 | 229 |
| (4-3/4) | (6-1/4) | (6-1/2) | -7 | -8 | -9 | |
| ID mm(inch) | 35(1 3/8) | 50.8(2) | 50.8(2) | 55(2 3/16) | 68(2 5/8) | 75 |
| -2 15/16 | ||||||
| Connection | 3-1/2REG | 4-1/2REG | NC50 | NC50 | 6-5/8REG | 7-5/8REG |
| Max. stroke mm | 100 | 120(4 3/4) | 120(4 3/4) | 140(5 1/2) | 140(5 1/2) | 140(5 1/2) |
| -3 15/16 | ||||||
| Max. working load | 265 | 333 | 333 | 343 | 480 | 529 |
| KN(tf) | -27.02 | -33.96 | -33.98 | -34.98 | -48.95 | -539.5 |
| Tensile yield strength | ≥2100 | ≥2200 | ≥2200 | ≥3200 | ≥6600 | ≥6600 |
| KN(tf) | -214.15 | -224.35 | -224.35 | -326.33 | -673.06 | -673.06 |
| Torsion yield strength | ≥40 | ≥60 | ≥60 | ≥110 | ≥270 | ≥270 |
| KN.m(kgf.m) | -4079.14 | -6118.7 | -6118.7 | -11217.62 | -27534.16 | -27534.16 |
| Elastic rigidity | 3.6 | 4.8 | 4.8 | 5 | 5.5 | 6.5 |
| KN/mm(kgf/mm) | -367.12 | -489.5 | -489.5 | -509.89 | -560.88 | -662.86 |
| Max. working temperature | 200 | 200 | 200 | 200 | 150 | 150 |
