Introduction


KINGWELL integrates new technology into enhancing the performance of downhole motors for oilfield exploration and production. Using the latest available technology and materials, it can be configured to answer specific downhole conditions or well designs. The motor generates an optimum balance of rotational speed and high torque to drive a variety of drill bits at speeds that maximize tool life and performance.



Application


1.Directional Drilling

2.Horizontal Drilling

3.Performance Drilling

4.Workover

5.HDD

6.Geo-thermal



By offering multiple configurations, KINGWELL motors can accommodate almost any type of drilling and drilling conditions. Each motor is assembled to meet our customer`s specifications to ensure maximum performance.






Parameters

Model	Flow Rate  (l/s)	Pressure Drop  (Mpa)	Rating Torque  (N`m)	Max.Torque (N•m)	Bit Weight  (kn)	Power  (Kw)	OD  (mm)	Length  (m)	Connections  (API REG)
									Box up	box down
5LZ43×7.0	0.5~1.5		108	173	6	3.68	43(11/16)	3.3	M27*2
5LZ60×7.0	1.26~3.13	2.5	160	280	5	2.35~6.03	60(23/8)	3.3	1.9TBG
5LZ73×7.0	1.26~5.05	3.5	275	480	12	3.5~13.82	73(27/8)	3.45	23/8 TBG		23/8 REG
5LZ89×7.0	2~7	4.1	560	980	18	5.6~19.35	89(31/2)	4.67	23/8 REG
5LZ95×7.0	4.73~11.04	3.2	950	1240	21	10.4~23.79	95(33/4)	3.7	27/8 REG
C5LZ95×7.0	5~13.33	6.5	1490	2384	55	21.8~59.3	95(33/4)	6.88	27/8 REG
5LZ100×7.0	4.73~11	3.2	710	1240	21	10.4~23.79	100(37/8)	4.35	27/8 REG
5LZ120×7.0	5.78~15.8	2.5	1300	2275	55	9.5~27.23	120(43/4)	4.88	31/2 REG
C5LZ120×7.0	6.667~20	5.2	2500	4000	55	70.5	120(43/4)	6.88	31/2 REG
D5LZ120×7.0	5.78~15.8	1.6	900	1440	55	6.6~18.85	120(43/4)	3.29	31/2 REG
3LZ165×7.0	17~27	4.1	2500	3750	80	78.54	165(61/2)	6.5	41/2 REG
5LZ165×7.0	16~28(47)	3.2	3200	5600	80	33.5~59.65	165(61/2)	6.25	41/2 REG
D7LZ165×7.0	18~28	2.5	2300	3680	80	30.4~47.2	165(61/2)	4.7	41/2 REG
9LZ165×7.0	19~31.6	2.5	3200	5600	100	45.24	165(61/2)	5.7	41/2 REG


 Technology Advantages:

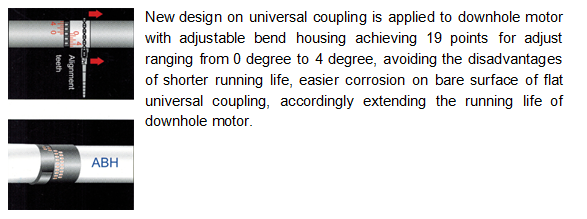

1. Adjustable Bend Housing

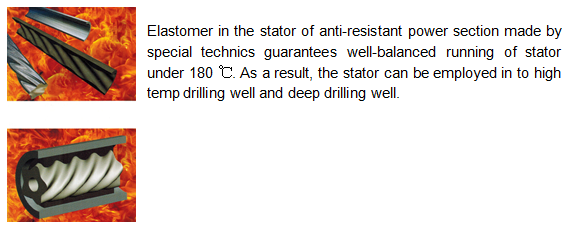

2. Heat-resistant Power Section

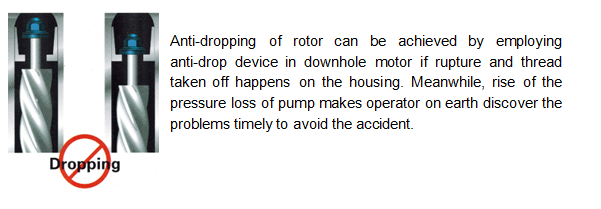

3. Anti-drop Device on Rotor

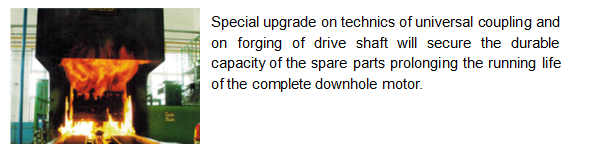

4. Anti-break Device on Drive Shaft



5. Bearing Section Assembly in New Transmission Seal

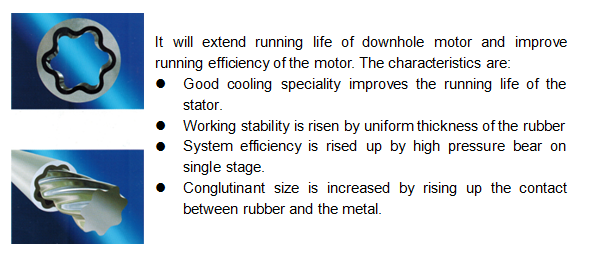

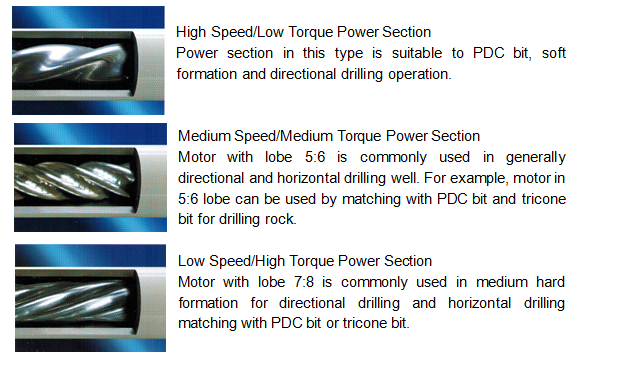

6. Uniform Thickness Power Section

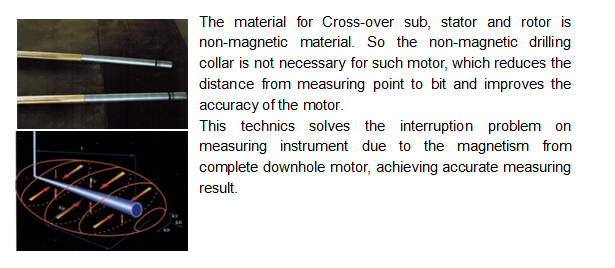

7. Non-magnetic Downhole Motor



8. Oil Seal Drive Shaft



9.Technology on Surface of Rotor



10. Material Management of Core Parts



12. KINGWELL Stator Bore Gauge

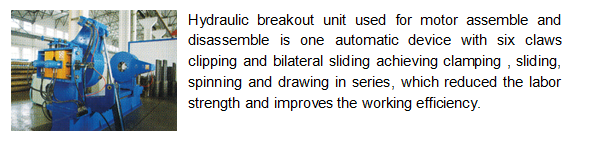

13. KINGWELL Hydraulic Breakout Unit

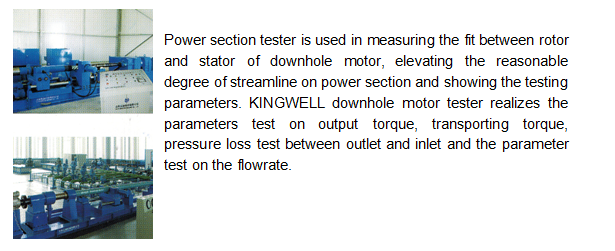

14. KINGWELL Downhole Motor Tester

Quality and Service System



Quality System

API symbol utility supplies the complete control for our product making all the manufacture steps under our control; ISO global quality system is the main quality management standard for us to strictly inspect technics and instantly upgrade the testing level.





Service System
Strong technological service team supplies the technical guide and help timely. Additionally, the after-sale service keep in pace with the product use. KINGWELL team is always with our customers together.
