Drilling Jar
21/04/2016

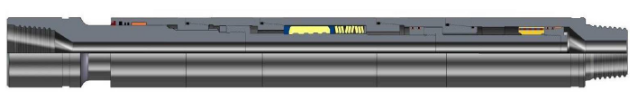

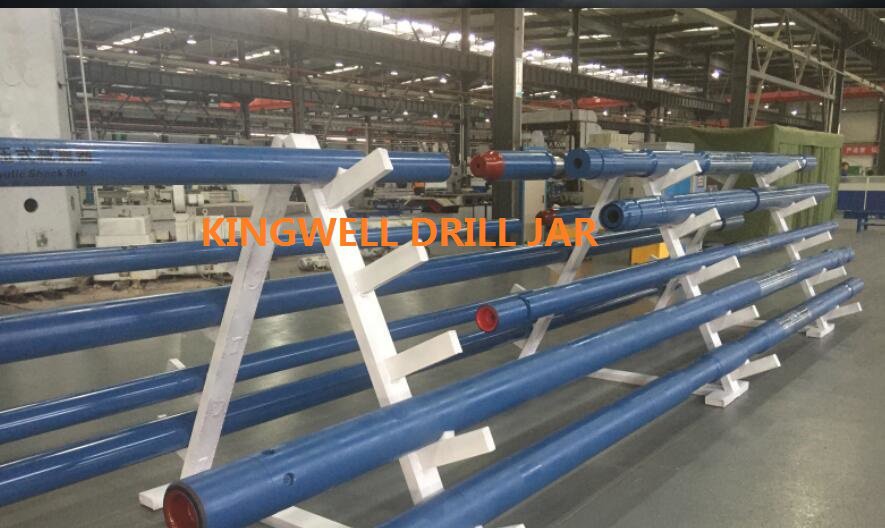

KINGWELL Drilling Jar Introduction:

The KINGWELL Drilling Jar is an effective tool for releasing stuck drill pipe and an accelerator is used to intensify force generated by the drilling jar at the upper depth of the well.
The KINGWELL Drilling Jar is designed to perform in any drilling environment, including offshore, onshore, conventional, horizontal and deep drilling.




KINGWELL Other Types of Drilling Jar:

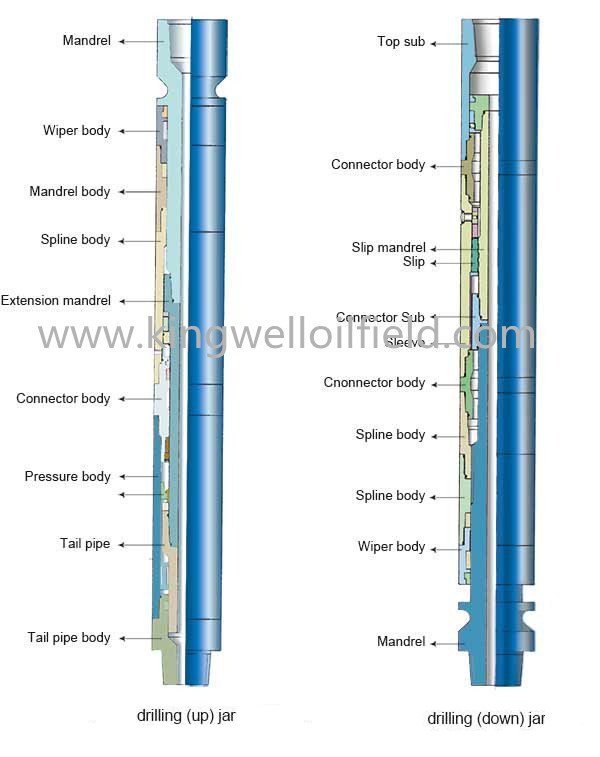

Mechanical Drilling Jar Type KW



The up-down jarring tonnage can be adjusted for a large range.The Drilling Jar can be actuated by mechanical fully. The inner chamber cannot produce high-pressure. The change of oiliness cannot impact jarring effect.The low sealing property can make the using life improve observably.The mounted special flexible joint can reduce the bending stress of Jar body effectively.It should adopt the new special material as to insure the higher performance.It should be used for straight hole, deep hole, complicated hole and directional hole.

Specification
Model O.D.
mm(in)		 I.D.
mm(in)		 Connection
API		 Max. Upward
Jarring force
kN (Ibf)		 Max.
Downward
jarring force
kN (Ibf)		 Max.
working
load
kN(lbf)		 Yield pull
kN(lbf)		 Max.Work
ing
Torgue
kN.m
(lbf.ft)		 Yield
torque
kN.m
(lbf.ft)		 Length
mm(in)
KW95Ⅱ 95 25.4 2 7/8REG 200 100 600 1000 4 8 5624
(3-3/4) -1 (45000) (23000) (135000) (225000) (2950) (5900) (221-7/16)
KW108Ⅱ 108 36 NC31 300  150  800  1350  10  20  6404
(4-1/4) (1-7/16) (67000) (34000) (180000) (303000) (7400) (14800) (252-1/8)
KW121Ⅱ 121  51  NC38 400  250  1100  1800  15  27  6354
(4-3/4) (2) (90000) (56000) (247000) (400000) (11000) (20000) (250-1/8)
KW127 127  51  NC38 400  250  12000  1800  15  27  6354
(5) (2) (90000) (56000) (270000) (400000) (11000) (20000) (250-1/8)
KW140 140  51  NC38 500  300  1350  2350  20  40  6300
(5-1/2) (2) (112000) (67000) (303000) (530000) (14000) (28000) -248
KW159Ⅳ 159  57  NC46 600  350  1600  2700  25  65  6517
(6-1/4) (2-1/4) (135000) (78000) (360000) (600000) (18000) (48000) (256-1/2)
KW165Ⅱ 165  57  NC50 650  350  2000  3100  25  75  6517
(6-1/2) (2-1/4) (145000) (78000) (450000) (700000) (18000) (55000) (256-1/2)
KW178Ⅱ 178  71  NC50 700  400  2400  4180  30  80  7266
(7) (2-13/16) (160000) (90000) (540000) (940000) (22000) (59000) (286)
KW203Ⅱ 203  71  6 5/8REG 800  450  2800  4900  35  145  7234
(8) (2-13/16) (180000) (100000) (630000) (1100000) (25800) (100000) (284-3/4)
KW229Ⅱ 229  76  7 5/8REG 1000  500  3000  7000  35  160  7754
(9) (3) (225000) (112000) (670000) (1570000) (25800) (118000) (305-1/4)


Full-Hydraulic Drilling Jar Type KWⅡ



The up-down jarring of Full-Hydraulic Drilling Jar Type KWII can be acted hydraulically, realizing the stepless control of up-down jarring tonnage. It can protect the drill string effectively and improve the using life. The hydraulic stored energy mechanism has the advantage of reliable property and good stability. The scope of time delay interval can be 30s～240s;the scope of service temperature can be - 40℃～180℃. It can adopt the new special material for higher property and safety. It can normally used for drilling, coring, work over and fishing etc.

Specification
Model O.D.
mm(in)		 I.D.
mm(in)		 Connection
API		 Max. Upward
Jarring force
kN (Ibf)		 Max.
Downward
jarring force
kN (Ibf)		 Max working
Load
kN(lbf)		 Tensie Yield
Strength
kN(lbf)		 Max.Working
Torgue
kN.m(lbf.ft)		 Torsional
Yield
Strength
kN.m(lbf.ft)		 Length
mm(in)
KW80Ⅱ 80  25  2 3/8REG 150  60  350  600  3  6  5550
(3-1/8) (1) (34000) (13500) (78000) (130000) (2200) (4400) (218-1/2)
KW95Ⅱ 95  32  2 7/8REG 200  100  600  1000  4  8  5600
(3-3/4) (1-1/4) (45000) (22500) (130000) (225000) (2950) (5900) (220)
KW121Ⅱ 121  51  NC38 350  180  930  1400  15  27  9801
(4-3/4) (2) (79000) (40000) (209000) (315000) (11000) (20000) (385-7/8)
KW159Ⅱ 159  57  NC46 700  350  1600  2450  25  65  9830
(6-1/4) (2-1/4) (160000) (79000) (360000) (550000) (18000) (48000) (387)
KW165Ⅱ 165  57  NC50 700  350  1600  2450  25  75  9830
(6-1/2) (2-1/4) (160000) (79000) (360000) (550000) (18000) (55000) (387)
KW178Ⅱ 178  71  NC50 800  400  2400  3700  30  80  9830
(7) (2-13/16) (180000) (90000) (540000) (830000) (22000) (59000) (387)
KW203Ⅱ 203  71  6 5/8REG 1000  500  2800  4450  35  145  9918
(8) (2-13/16) (225000) (112000) (630000) (1000000) (25800) (100000) (390-1/2)
KW229Ⅱ 229  76  6 5/8REG 1200  600  3000  7100  35  160  9908
(9) (3) (270000) (135000) (670000) (1600000) (25800) (118000) (390)
KW241Ⅱ 241  76  7 5/8REG 1250  650  3500  8100  40  180  9908
(9-1/2) (3) (280000) (146000) (787000) (1820000) (29500) (133000) (390)


Integral Mechanical Drilling Jar Type QW



Model “QW” Drilling Jar can be actuated by mechanical fully. The inner chamber cannot roduce high-pressure. The change of oiliness cannot impact jarring effect.The short overall length can reduce the harm of bending alternating stress, facilitating the conveyance. It has the low sealing property and reliable using property.It should be used for offshore drilling and directional drilling.

Specification
Model O.D.
mm(in)		 I.D.
mm(in)		 Connection
API		 Max. Upward
Jarring force
kN (Ibf)		 Max.
Downward
jarring force
kN (Ibf)		 Max.
working
load
kN(lbf)		 Yield pull
kN(lbf)		 Max.Work
ing
Torgue
kN.m
(lbf.ft)		 Yield
torque
kN.m
(lbf.ft)		 Length
mm(in)
QW46 124  51  NC38 400  250  1100  1600  15  27  3646
(4-7/8) (2) (90000) (56000) (247000) (360000) (11000) (20000) (143-1/2)
QW62 162  57  NC46 600  360  1600  2700  25  65  4150
(6-3/8) (2-1/4) (135000) (80000) (360000) (600000) (18000) (48000) (163-3/8)
QW70 178  57  NC50 700  400  2400  3400  30  80  4150
(7) (2-1/4) (160000) (90000) (540000) (760000) (22000) (59000) (163-3/8)
QW80 203  76  6 5/8REG 820  460  2800  5200  35  145  4200
(8) (3) (185000) (100000) (630000) (1170000) (25800) (100000) (165-3/8)


Hydro-Mechanical Drilling Jar Type QWJX



Model QWJX Drilling Jar can integrate the mechanical and hydraulic. The up jarring can be acted by hydraulic as to realize the stepless control of up jarring tonnage. The lock mechanism designed specially can avoid the mistaken jarring of up. The down jarring can be acted mechanically. It can adopt the new special material for higher property and safety. It can be used for directional hole, deep hole and so on.

Specification
Model O.D.
mm(in)		 I.D.
mm(in)		 Connection
API		 Max. Upward
Jarring force
kN (Ibf)		 Max.
Downward
jarring force
kN (Ibf)		 Max working
Load
kN(lbf)		 Tensie Yield
Strength
kN(lbf		 Max.
Working
Torgue
kN.m(lbf.ft)		 Torsional
Yield
Strength
kN.m(lbf.ft)		 Length
mm(in)
QWJX121Ⅱ 121  57  NC38 350  250  900  1350  15  27  4500
(4-3/4) (2-1/4) (78000) (56000) (200000) (300000) (11000) (20000) (117-3/16)
QWJX159 159  57  NC46 700  350  1600  2700  25  65  5007
(6-1/4) (2-1/4) (156000) (78000) (360000) (600000) (18000) (48000) (197-1/8)
QWJX165 165  71  NC50 700  350  2000  3200  25  75  5256
(6-1/2) (2-13/16) (156000) (78000) (450000) (720000) (18000) (55000) (206-15/16)
QWJX178 178  71  NC50 800  400  2400  3200  30  80  5256
(7) (2-13/16) (180000) (90000) (540000) (720000) (22000) (59000) (206-15/16)
QWJX197 197  76  6 5/8REG 1000  450  2600  5100  30  100  5095
(7-3/4) (3) (225000) (100000) (580000) (1150000) (22000) (74000) (200-5/8)
QWJX203 203  76  6 5/8REG 1000  450  2800  5200  35  145  5095
(8) (3) (225000) (100000) (630000) (1170000) (25800) (100000) (200-5/8)
QWJX241 241  76  7 5/8REG 1400  500  3500  9500  40  180  5300
(9-1/2) (3) (315000) (112000) (780000) (2100000) (30000) (130000) (208-5/8)


Mechanical & Hydraulic Drilling Jar Type KWQW



Model “KWQW” Drilling Jar belongs to the advanced product of model JYQ Jar. The up jarring can be acted by hydraulic as to realize the stepless tonnage control. The new hydraulic valve machine makes upjarring more stable and reliable. The down jarring can be acted mechanically. And the adjusting mechanism designed specially can realize manual regulation of down-jarring tonnage; the special slips construction makes down-jarring more stable and larger service. It can adopt the new special material for higher property and safety. It can be used for directional hole, deep hole and so on.

Specification

Model O.D.
mm(in)		 I.D.
mm(in)		 Connection
API		 Max. Upward
Jarring force
kN (Ibf)		 Max.
Downward
jarring force
kN (Ibf)		 Max working
Load
kN(lbf)		 Tensie Yield
Strength
kN(lbf)		 Max.Working
Torgue
kN.m(lbf.ft)		 Torsional
Yield
Strength
kN.m(lbf.ft)		 Length
mm(in)
KW165QW 165  57  NC50 700  350  2000  3750  25  75  9000
(6-1/2) (2-1/4) (156000) (78000) (450000) (843000) (18000) (55000) (354-5/16)
KW203QW 203  71  6 5/8REG 1000  450  2800  6650  35  145  9000
(8) (2-13/16) (225000) (100000) (630000) (1495000) (25800) (100000) (354-5/16)
