DST TEST STRING
03/11/2015

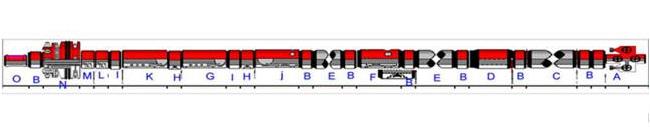

DST TEST STRING SHEMATIC AND DETAILED DESCRIPTION:
Drill-stem testing (DST) is a procedure used in the petroleum industry to determine the productive capacity,and permeability of a potential petroleum reservoir zone. It is comprised primarily of a flow test on isolated rock formations that indicate the possibility and presence of an oil reservoir. DST, is used primarily on exploratory oil wells and gas wells, to ascertain their commercial productivity
Halliburton type, all could change with Halliburton parts.
All equipments are produced according to API standard NACE MRO175-2002
Type:full bore drill stem testing
service:H2S, CO2
Working pressure:10000psi ~ 15000psi
Working condition:High pressure high temperature(HPHT)
| DESCRIPTION | OD(in) | ID(in) | Top Connection | Bottom Connection | |
| A | SURFACE TEST TREE | 3-1/16" | 5 3/4" Acme | 5 3/4" Acme | |
| B | CROSSOVER | 8.00 | 3.00 | 5 3/4" Acme | 5 3/4" Acme |
| CROSSOVER | 8.00 | 3.00 | 5 3/4" Acme |
3-1/2"聽 PH-6 |
|
| CROSSOVER | 5.00 | 2.25 | 3-1/2" PH-6 | 3-7/8"CAS | |
| CROSSOVER | 5.00 | 2.50 | 3-7/8"CAS | 3-1/2" IF | |
| CROSSOVER | 5.00 | 2.25 | 3-1/2" IF | 3-7/8"CAS | |
| CROSSOVER | 5.00 | 2.25 | 3-7/8"CAS | 3-1/2"IF | |
| CROSSOVER | 5.00 | 2.50 | 3-1/2"IF | 2-7/8" EUE | |
| C | 3-1/2" PH-6 TUBING | 3.50 | 2.75 | 3-1/2" PH-6 | 3-1/2" PH-6 |
| D | SLIP JOINT | 5.00 | 2.25 | 3-7/8"CAS | 3-7/8"CAS |
| E | DRILL COLLAR | 4.75 | 2.2 | 3-1/2" IF | 3-1/2" IF |
| F | RD CIRCULATING VALVE | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| J | RD SAFETY CIR. VALVE | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| H | DRAIN VALVE | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| I | CARRIER (2 Electronic) | 5.00 | 2.25 | 3-7/8"CAS | 3-7/8"CAS |
| CROSSOVER | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS | |
| G | OMNI CIRCULATING VALVE | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| K | SELECT TESTER VALVE | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| L | BIG JOHN JAR (Closed) | 5.00 | 2.28 | 3-7/8"CAS | 3-7/8"CAS |
| M | SAFETY JOINT | 5.00 | 2.44 | 3-7/8"CAS | 3-7/8"CAS |
| N | 7" CHAMP PACKER | 5.65 | 2.37 | 3-7/8"CAS | 3-1/2"IF |
| O | MULE SHOE | 2.87 | 2.50 | 2-7/8" EUE |
