Combo Casing Clean Up Tool
04/02/2017

Combo Casing Clean Up Tool



Structure of Scraper Part

KWCS Scraper is made up of mandrel, centering sleeve, upper support seat, hoop scraper, semi-annular plate, lower support seat, fixing sleeve, spline body, gland nut, lower joint as well as other components.


Model	Max. OD (MM)	Max. OD. Of Blade (MM)	Casing Weight	ID (MM)	Overall Length (MM)	Connection(API) UP X DOWN
KWCS103	103	118	15-18#	30	1520	2 7/8”REGX2 7/8”REG
KWCS148	148	168	23-32#	40	2087	NC38 X NC38
KWCS210	210	230	40-47#	70	2356	NC50 X NC50


Structure of Magnet Part

KWCM high magnet part is made up of upper joint, body, rectangular magnet, lower joint and other components.

Model	Max. OD (MM)	ID (MM)	Overall Length (MM)	Connection(API) (BXP)	Max. OD. Of Blade IN (MM)	Working Temp. ℃
KWCM146	146	40	1847	NC38 X NC38	7(178)	120-190
KWCM209	209	70	1974	NC50 X NC50	9 1/2 (245)	120-190

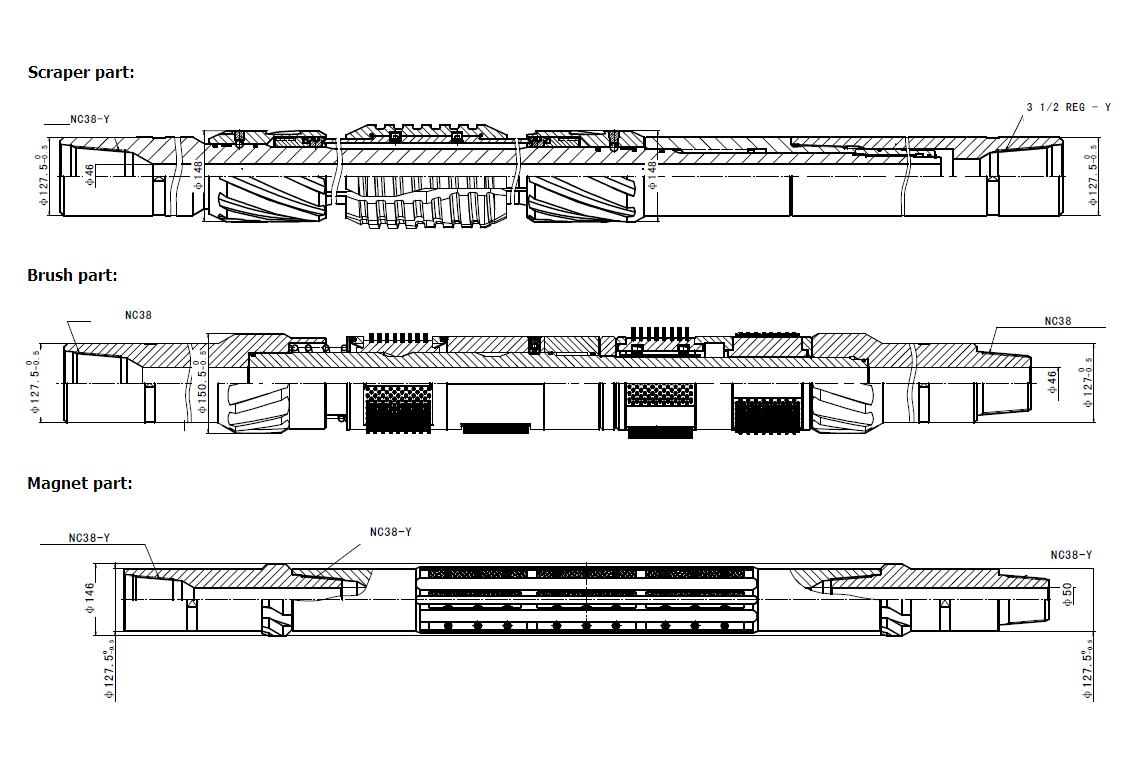

Technical Drawings for Magnet, Scraper, and Brush
