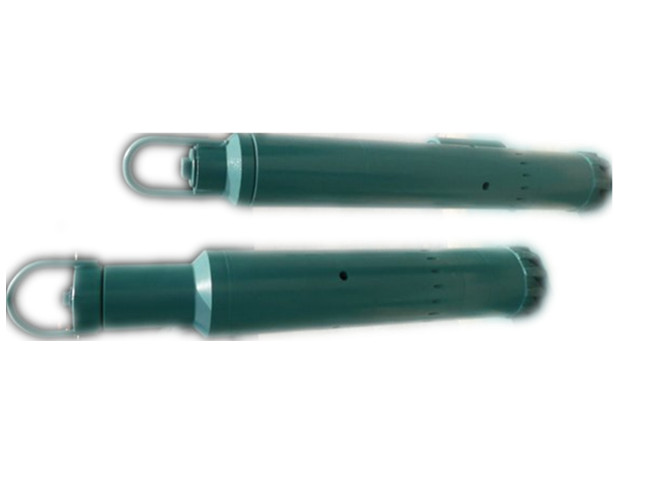

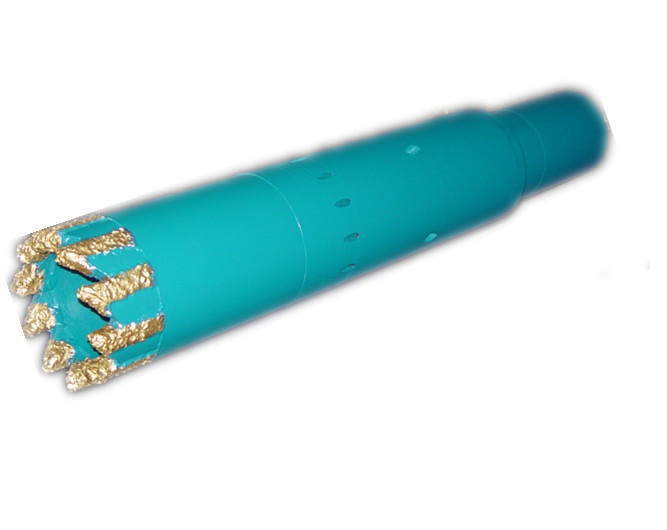

Junk Basket
Product Number: KW-DE-17 The Reverse Circulation Junk Basket is used to retrieve all types of small junk objects in well bores. Such as bit cones, cutting blades and hand...
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Junk Basket Features & Benefits:

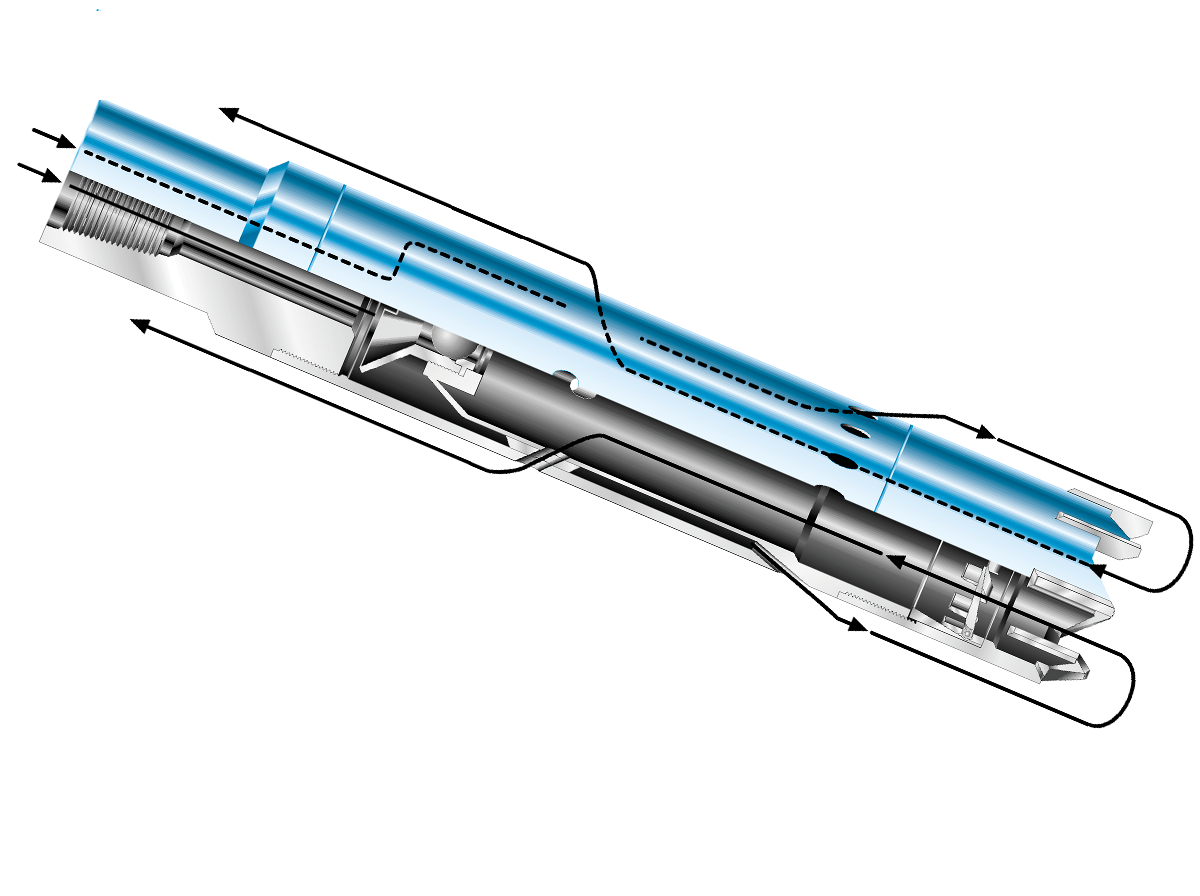

The Reverse Circulation Junk Basket is used to retrieve all types of small junk objects in well bores. Such as bit cones, cutting blades and hand tools, etc.
KINGWELL Junk Basket Technical Data:
The Reverse Circulation Junk Basket is used to retrieve all types of small junk objects in well bores. Such as bit cones, cutting blades and hand tools, etc.
KINGWELL Junk Basket Technical Data:
| Model | Connection thread | Sleeve OD(mm) | Max OD of fish | Steel ball diameter(in) | Well hole diameter(mm) |
| LL-F91 | NC26 | 91 | 40 | 1" | 114 |
| LL-F103 | NC26 | 103 | 50 | 1 3/16" | 127 |
| LL-F115 | NC31 | 115 | 60 | 1 1/8" | 139.7 |
| LL-F135 | NC31 | 135 | 70 | 1 1/3" | 168.3 |
| LL-F143 | NC31 | 143 | 80 | 1 1/3" | 177.8 |
| LL-F178 | NC35 | 178 | 100 | 1 1/3" | 203.1 |
| LL-F197 | NC50 | 197 | 120 | 2" | 215.9 |
| LL-F200 | NC50 | 200 | 120 | 2" | 215.9 |
| LL-F225 | NC50 | 225 | 120 | 2" | 273 |
| LL-F232 | NC50 | 232 | 125 | 2" | 295 |
| LL-F279 | NC50 | 279 | 160 | 2" | 311.1 |
| LL-F285 | 7 5/8REG | 285 | 160 | 2" | 311.1 |
| LL-F330 | 7 5/8REG | 330 | 210 | 2” | 406.4 |
| LL-F381 | 7 5/8REG | 381 | 260 | 2" | 444.5 |
